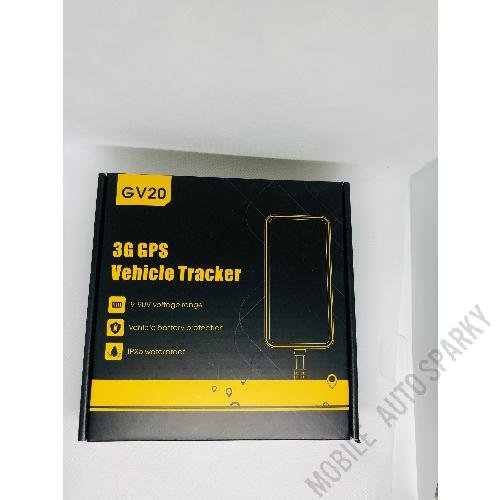

GV20 3G Vehicle GPS Tracker
GV20 3G Vehicle GPS Tracker
Availability: In stock & Ready To Ship all over Auckland !
- 100% Kiwi Owned And Operating From Past 12 Years.
***** INSTALLATION*****
We Provide Installation With A very Competitive price.
We Provide Excellent After Sale Service,Mobile support Auckland Wide.
Even on Weekends And After Hours Without Any Extra Cost
*******Warranty******
1 Year Product Warranty!
Life Time Warranty For Installation.
Terms And Conditions Applied
-There Might Be Extra Charges For European Vehicles
-Extra Charges For Any Extra Service Required
-Appointment is Must
GV20 3G Vehicle GPS Tracker
With the finest craftsmanship, GV20 is a fully-featured, highly competitive and cost-effective 3G GPS tracker developed for vehicle, motor and bus tracking. It offers you crystal clear real-time tracking details, including location, route, flashback, etc., even in tough environment. It supports remote fuel/power cutoff and gives you insight on ignition status. Wherever you go, its instant alert notifications allow you to react accordingly and immediately.
FEATURES
WCDMA & GSM
3G network for outstanding coverage
GPS+LBS tracking
Allow the location to be pinpointed in real time or periodically
IPx5 dust and waterproof
Water-resistant to ensure stable operation in tough environment
Remotely cut off fuel/power
Compel the vehicle to stop by breaking off the fuel connection
Tamper alert
Be notified of any unauthorized displacement from original installation
9-90V voltage range
Wide operating voltage applicable to all types of vehicles
ACC detection for ignition status
Be aware of the igniton status whenever you need
Vehicle battery protection
Never drain out of the battery of moforcycle for optimal protection
GSM Specification |
|
| Frequency | WCDMA 850/900/1900/2100MHz GSM 850/900/1800/1900 MHz |
| Communication system | WCDMA/GSM |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
GPS Specification |
|
| GPS chipset | Ublox |
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Location accuracy | |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤35sec |
Function & Package |
|
| Standby current | 5mA/12VDC |
| Battery | 400mAh/3.7V |
| LED Indicator | GPS(blue), GSM(green), Power(red） |
| Working Voltage/current | 9-90VDC/31mA(12VDC) 19mA(24VDC) |
| Operating Temperature | -20℃～ 70℃ |
| Dimension | 88(L) ×43.0 (W) ×13.0 (H) mm |
| Weight | 60g |
Tracking Platform Monthly Charges $20.00
*******SHIPPING*****
We Use Best Courier Service With Signature Required To Deliver Services. We Post Goods Immediately Once Payment Is Confirmed.
